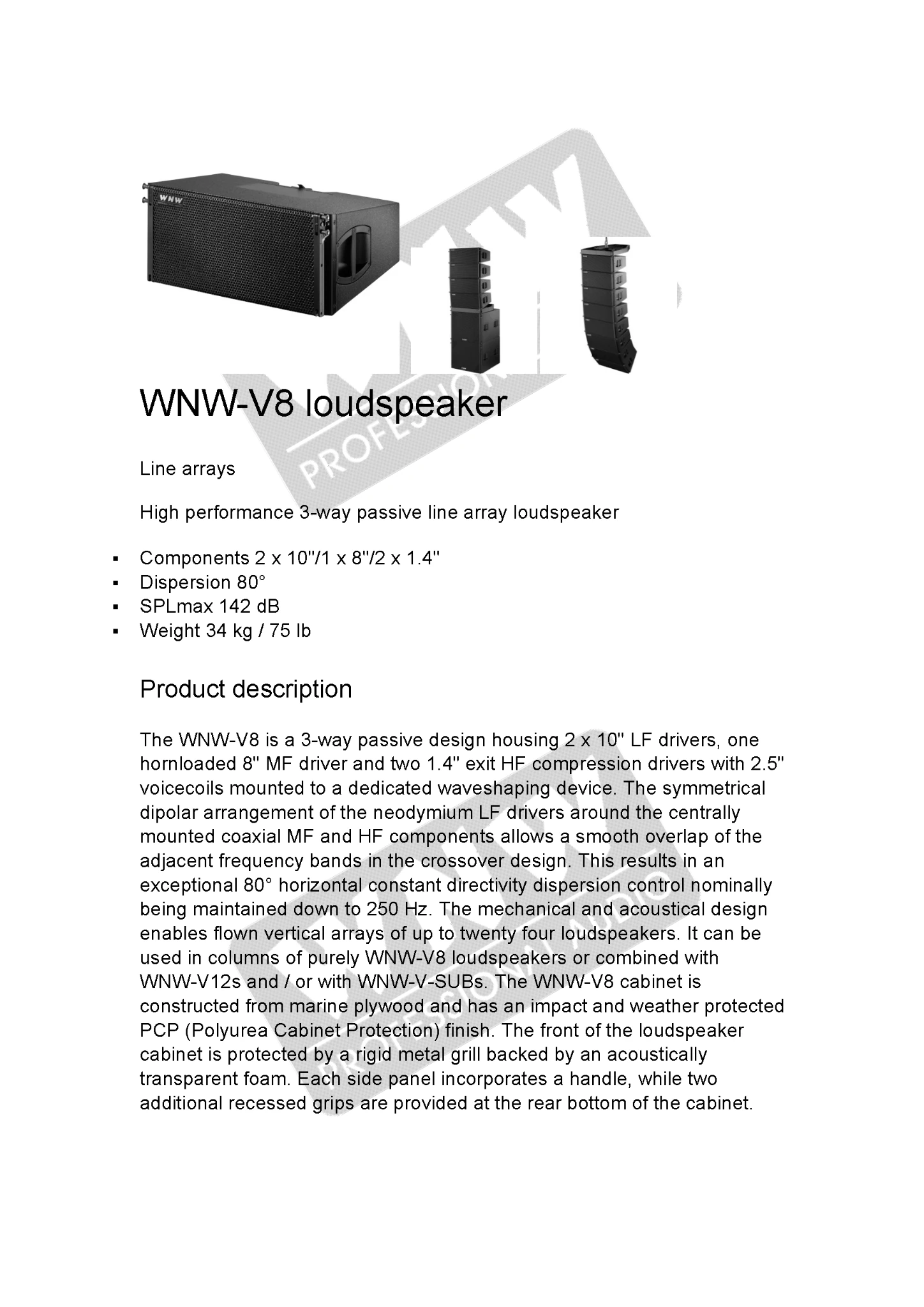

The main image shows one V8 cabinet. The supplied sheet lists two 10-inch low-frequency drivers, one 8-inch mid driver and two 1.4-inch high-frequency drivers. Multiple cabinets can form an array.

LF / MF / HF

2 × 10″ / 1 × 8″ / 2 × 1.4″

Horizontal dispersion

80°

Maximum SPL

142 dB*

Weight

34 kg*

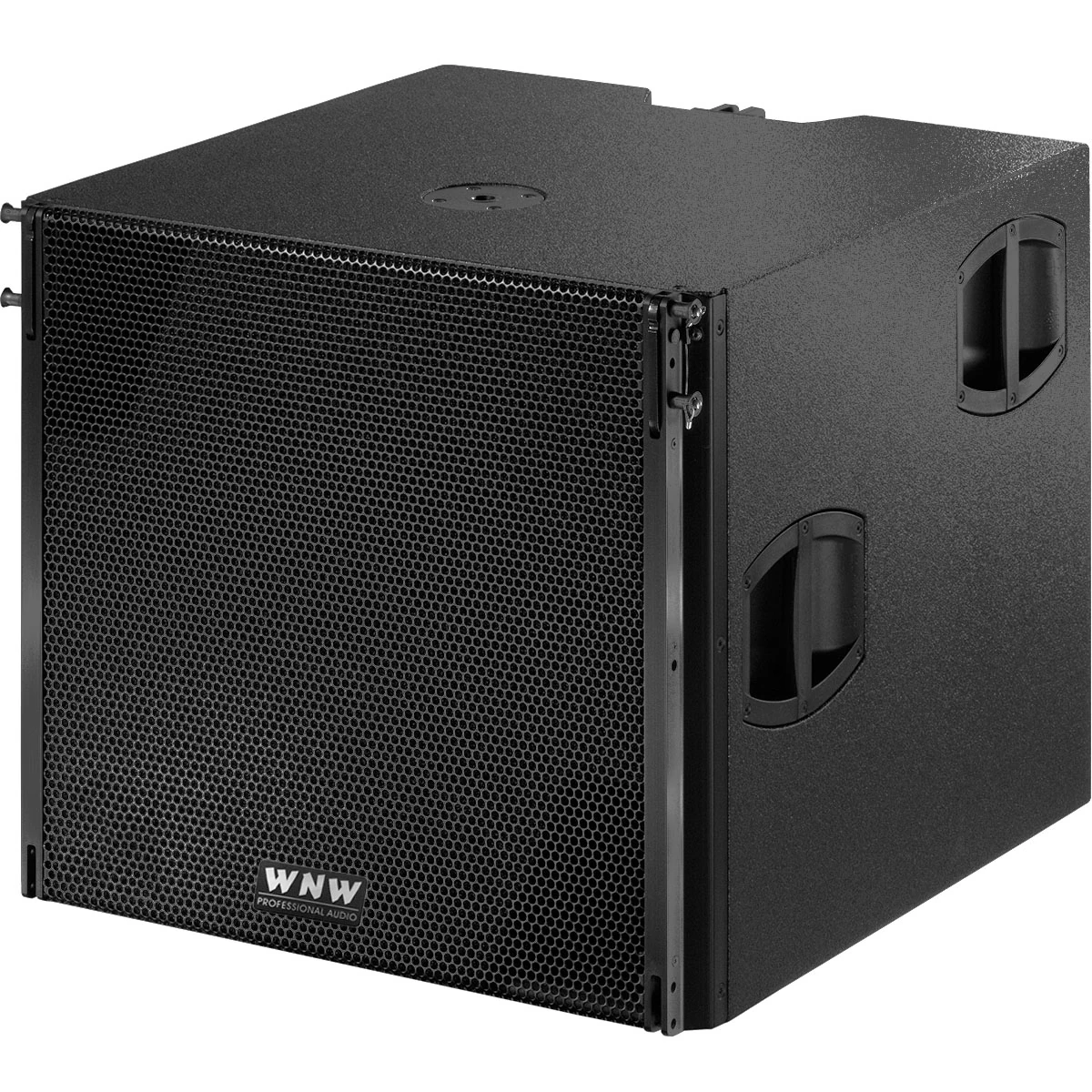

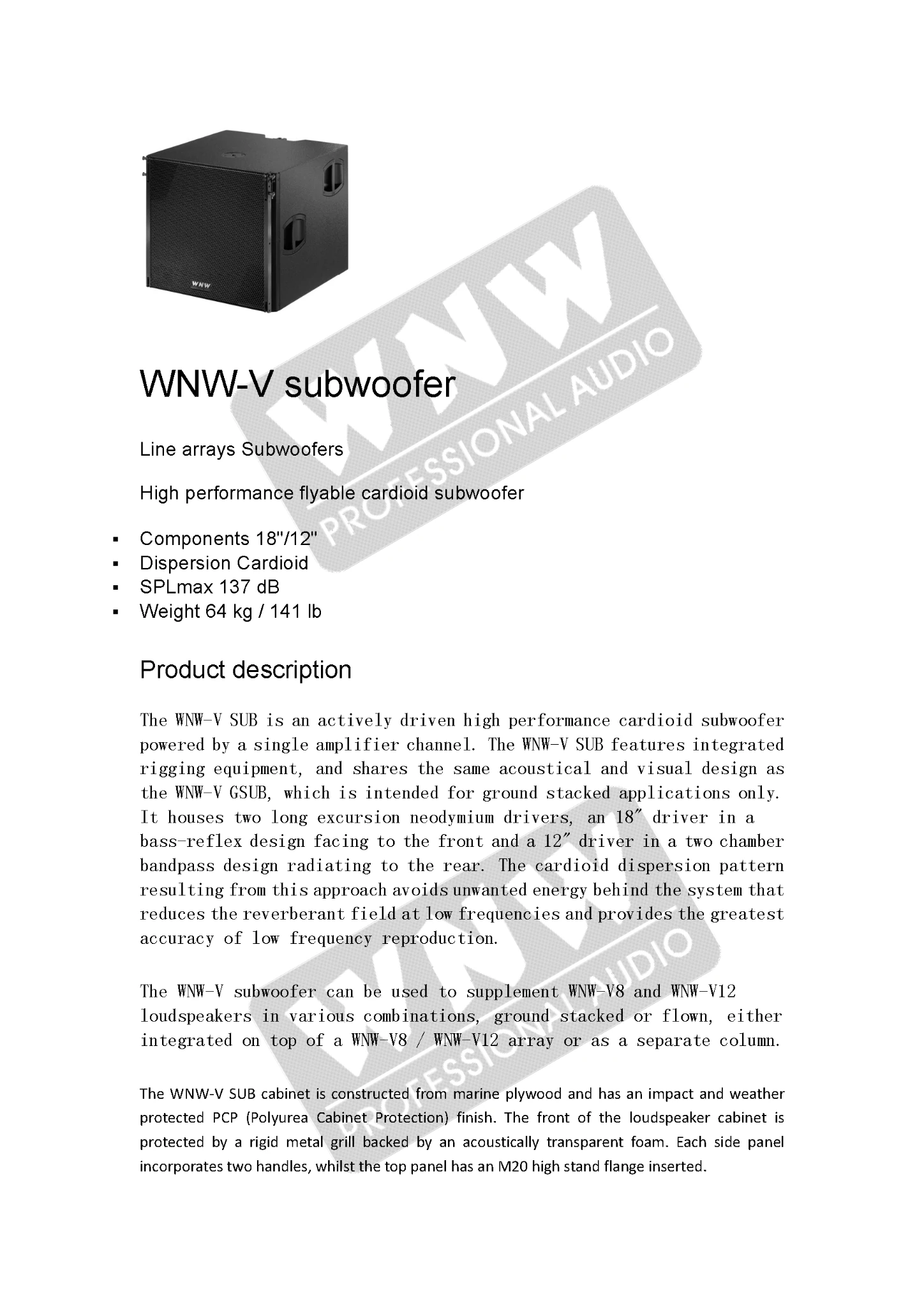

Set contents: 8 WNW V8 full-range loudspeakers + 4 matching subwoofers. Configuration photos are illustrative; the sold set is the 8 + 4 combination.
